Project Description

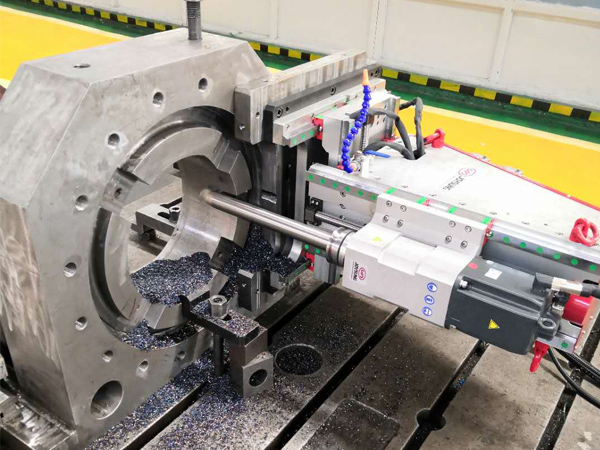

TCM508 CNC Thread Milling Machine
High-precision, portable CNC mill machine with a Siemens CNC control system allows for accurate and repeatable machining,includes removing broken studs and repairing damaged threads on site etc.
X Axis Stroke: 203mm Y Axis Stroke: 203mm Z Axis Stroke: 508mm
Feature:
- 3-axis CNC control capability to perform bolt extraction and thread refurbishment in a single set-up
- High tolerance profile rails produce consistent results
- All three axies utilise precision ground ball screws which provide precise movement of the mill head
Our TCM508 CNC Thread milling machines is a high-precision, portable CNC mill machine with a Siemens CNC control system allows for accurate and repeatable machining, such as removing broken studs and repairing damaged threads on site.
| X Axis Stroke | 203mm (8.0″) |
| Y Axis Stroke | 203mm (8.0″) |
| Z Axis Stroke | 508mm (20.0″) |
| Milling Spindle Head Drive Unit | Servo Motor |
| R.P.M | 0-3000 |
| Power | 3.1Kw |
| CNC Control system | Siemens |
| Machine Weight (less base unit) | 260kg |
| Shipping Weight | 350kg |
Operational Dimensions
Operational Dimensions
TCM508 Portable CNC Mill
