Project Description

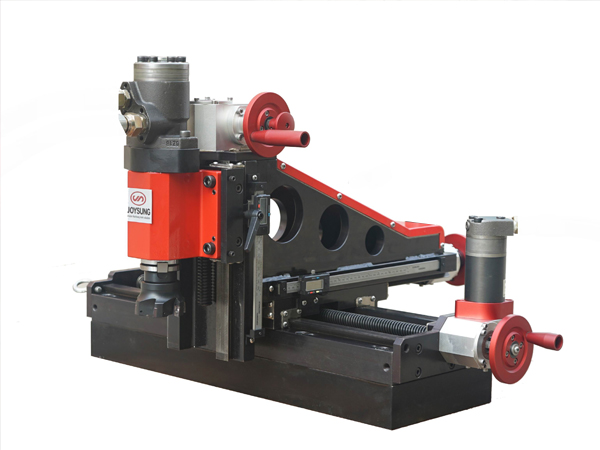

KMM300 Keyway Milling Machine
A mini ,portable, compact , 3 axis line milling machine with a magnetic base, It is a preferred machine tool for machining small surface and keyway milling on site or in workshop…
X Axis stroke: 300mm, Y Axis stroke: 100mm, Z Axis stroke: 80mm
Features:
- Compact, light design
- Magnet installation
- Easy to install and operate
- Unique tool for repairing maintenance immovable workpiece
JOYSUNG KMM300 Mini Milling Machine is a highly portable linear milling machine designed for on-site machining and precision milling tasks in workshops. Its compact structure, powerful magnetic base, and high-precision dovetail guide rails make it an ideal tool for efficient and precise machining.
Design and Structure
The weight of KMM300 is only 78 kg, its easy to transport and set up. Its unique magnetic base eliminates the need for welding or bolt fastening, greatly simplifying the installation process. Even in challenging mounting environments, it securely adheres to the machining surface.
Magnetic Base
The KMM300 utilizes advanced magnetic mounting technology to provide a strong holding force of up to 3200kgf.. Whether in a horizontal, vertical, or inverted position, this magnetic base ensures firm machine fixation, enhancing machining accuracy and safety. Even when installed upside down, it can achieve a cutting depth of up to 2 mm.
High-Precision Guide Rail System
The X/Y axis feed assemblies feature rugged dovetail guides that are precision ground and hardened to ensure accuracy and long life.
Powerful Drive System
Powered by a 1.6HP motor, the KMM300 delivers stable and reliable power output, capable of handling various small surface milling tasks. It achieves a maximum cutting depth of 2 mm, ensuring efficient cutting performance to meet diverse machining requirements.
Versatile Applications
This machine is not only suitable for standard surface milling but also offers an optional V-mounting base, allowing it to process shaft-type workpieces. For example, it can cut new keyways on shafts or refurbish worn ones, expanding its range of applications for on-site repairs and precision machining scenarios.
Portability and Ease of Use
The KMM300 is designed to be compact and easy to operate, making installation and deployment quick even in confined workspaces. Due to its lightweight design, users can conveniently transport it to different job sites, making it especially suitable for industrial maintenance, pipeline machining, and mechanical manufacturing.
| X Axis Stroke | 300mm(12.0″) |
| Y Axis Stroke | 100mm(4.0″) |
| Z Axis Stroke | 80mm(3.0″) |
| X/Y/Z Axis Drive | Manual Feed |
| Milling Spindle Head Taper | R8 |
| Milling Head Drive Power Unit(standard) | Electric Motor,1400w |
| Spindel Head RPM | 0-800 |
| Standard Face Mill | 80mm(3.0″) |
| Installation Type | Magnet or V mounting kit |
| Machine Weight | 78Kg |
| Magnetic base Holding Force | 3200kgf(31700N) |
| Shipping Weight(standard configuration) | 118Kg |
