FDG610 Flange Facer
An internally mounted,lightweight,portable flange facer for all types of flange facing, seal grooves,lens ring,RTJ grooves,weld preparation etc.
Facing Range:50-610mm(2-24.0″) Clamping Range: 50-558mm(2-22.0″)
Features:
- Quick set adjustable clamping jaws
- Aluminum alloy shipping box
- Three mounting bases
FDG610 Flange Facer is a versatile flange facing machine that allows you to face, bevel, and turn pipe, valve, and pump flanges with easy, and can give machine shop accuracy. The three-piece mounting system makes setup and alignment of this machine quick and easy. It allows one operator to easily set up the machine and begin machining in just a few minutes.
Superior Machining
It can cuts “O” Ring grooves, Lens ring, RTJ and other V grooves, standard and compact flange facings, weld preparations etc.
Lightweight & Precise Body
Modular design, high-intensity of material with processing technology, which makes sure the accuracy of processing.
Base assembly
Equipped three pieces high strength alloy structural steel mounting bases with steel threaded inserts, and adjustable feet enable the machine to be installed perfectly level and central in any flange from 50mm (2″) to 610mm (24″) in diameter.
Quick Set Up
Flange facing machine adopt independent design of quick model parts, therefor , it’s fast to mount it and machining. A experienced operator will finish the mounting processing within an hour according the rightful operating process..
Drive Power Unit
The machine is driven by a 0.8KW(1.1HP ) Pneumatic motor or a 0.75KW Servo motor, It can achieve cuts up to a maximum depth of 2mm (0.079″) on flanges without bolt holes or 0.5mm (0.02″) with holes and can achieve a flatness better than 0.02mm at 558mm (22″) diameter.
Facing Diameter Range | 50-610mm (2.0-24.0″) |
Clamping Diameter Range | 50-558.8 mm (2.0-22.0″) |
Min Swing Diameter | 515mm (20.0″) |
Tool Post Stroke | 50mm (2.0″) |
Tool Post Swivel Angle | + / – 30⁰ |
R.P.M | 0-42 |
Drive Power Unit-Pneumatic | 1.2hp (0.8kw) |
Air Consumption / Supply Required | 1.2m³/min |
Drive Power Unit-Electric | 1.2hp (0.75kw) |
Electric Supply Required | Single Phase,110/230v |
Machine Weight | 45kg |
Shipping Weight | 60kg |
Shipping Dimensions | 670*450*400 mm |
Feed Rates
Facing Feed (1.75mm Pitch Feed Screw) | Facing Feed (2.0mm Pitch Feed Screw) | Facing Feed (3.0mm Pitch Feed Screw) |
0.10/0.41mm | 0.16/0.64mm | 0.18/0.71mm |
Operational Dimensions & Configuration
FDG610 Flange facer demo

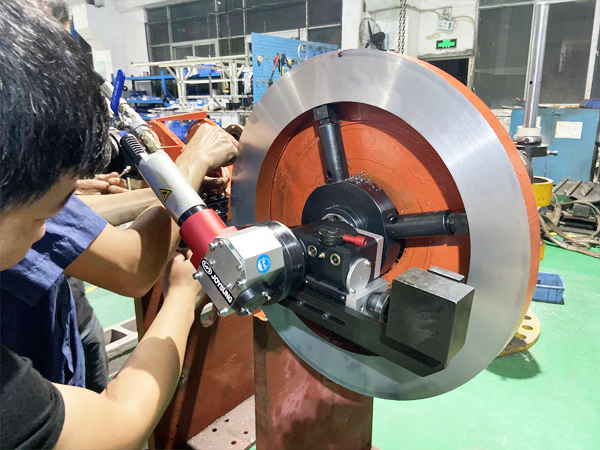

FDG610 Flange Facer RTJ machining
FDG610 Max Facing Diameter: 610mm
JOYSUNG FDG610 Flange Facer In Southeast Asia
FDG610 Flange Facer For RTJ Groove
FDG610 Max Facing Diameter: 610mm
JOYSUNG FDG610 Flange Facer In Russia
FDG610 Flange Facer For RTJ Groove
FDG610 Flange Facer With Servo Motor
JOYSUNG FDG610 Flange Facer In Peru
FDG610 Flange Facer For RTJ Groove
FDG610 Flange Facer On site machining
