FDG1000 Flange Facer
An internally mounted flange facing machine for all types of flange facing, seal groove machining, weld preparation, counter boring and heat exchanger repair.
Facing Range:150-1000mm(6-40.0″) Clamping Range:150-860mm(6-34.0″)
Features:
- Quick set adjustable clamping jaws

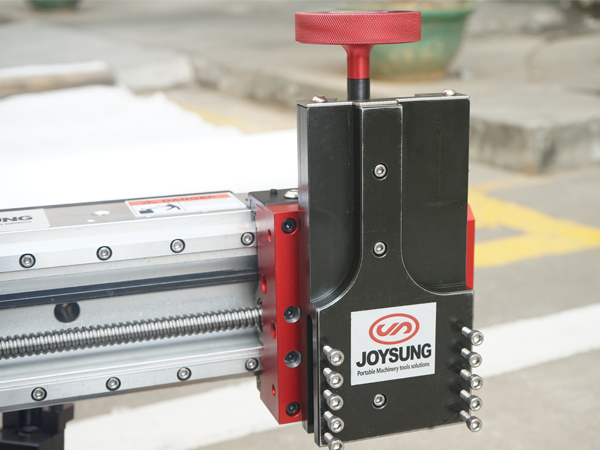

- Swivel toolpost for grooves and bevels
- Continuous groove geared facing and boring feeds

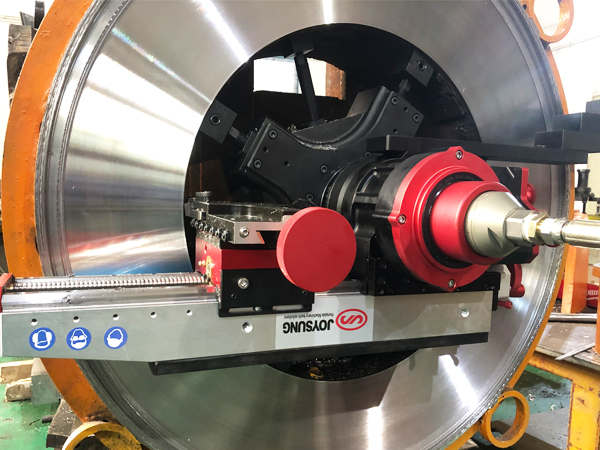

FDG1000 Flange Facer is a versatile flange facing machine that allows you to face, bevel, and turn pipe, valve, and pump flanges with easy, and can give machine shop accuracy.Three pieces mounting system makes setup and alignment of this machine quick and easy. It allows one operator to set up the machine and begin machining in just a few minutes.
Superior Machining
It can cut “O” Ring grooves, Lens ring, RTJ grooves,RF,weld preparations etc.
Lightweight & Precise Body
Modular structural design, high-intensity of material and processing technology, which makes sure the accuracy of processing.

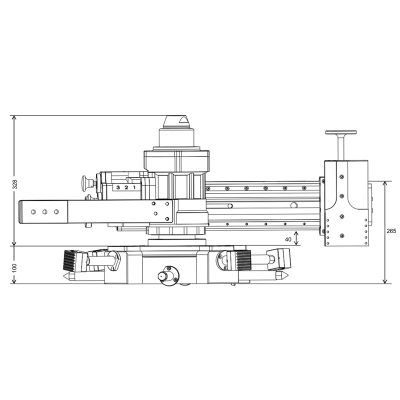

Base assembly
Equipped three pieces high strength mounting base unit with steel threaded inserts, and adjustable feet enable the machine to be installed perfectly level and central in any flange from 150mm (6″) to 1000mm (40″) in diameter.
Quick Set Up
Flange facing machine adopt independent design of quick model parts, therefor , it’s fast to mount it and machining. A experienced operator will finish the mounting processing within an hour according the rightful operating process..
Drive Power Unit
The machine is driven by a 1.7KW(2.2HP ) Pneumatic motor, It can achieve cuts up to a maximum depth of 2mm (0.079″) on flanges without bolt holes or 0.2mm with holes and can achieve a flatness better than 0.02mm at 762mm (30″) diameter.

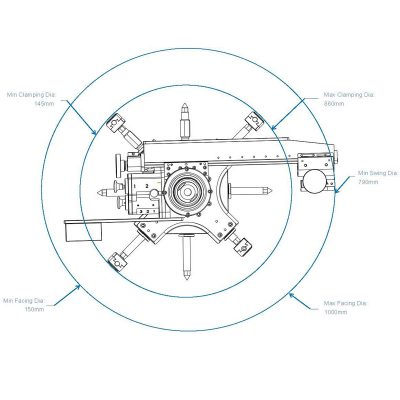

| Facing Diameter Range | 150-1000mm（6.0-40.0″） |
| I.D Clamp Range | 150-860mm(6.0-34.0″) |
| Min Swing Diameter | 790mm |
| Tool Post Stroke | 102(4.0″) |
| Tool Post Swivel Angle | + / – 30⁰ |
| R.P.M | 0-25 |
| Drive Power Unit- Pneumatic | 2.2Hp(1.7kw) |
| Air Consumption / Supply Required | 1.93m³/min |
| Machine Weight (less base unit) | 128Kg |
| Shipping Weight(metal case) | 305Kg |
Feed Rate
| In | Out | Up/down | |||
| Gear | mm/rev | Gear | mm/rev | Gear | mm/rev |
| 1 | 0.128 | 1 | 0.151 | 1 | 0.03 |
| 2 | 0.251 | 2 | 0.292 | 2 | 0.06 |
| 3 | 0.591 | 3 | 0.691 | 3 | 0.15 |
Optional Accessories
Heat Exchanger Mounting Kit
Back Facing Kit
2 Years Recommended Spares Kit
RTJ Groove Measuring Kit
Secondary Tool Holder
Hydraulic Drive Power Unit
