Project Description

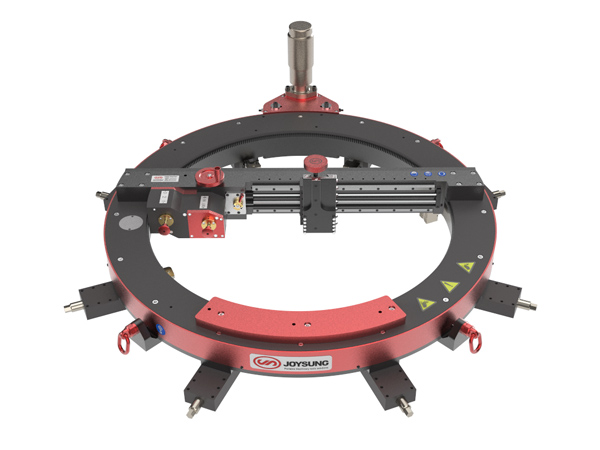

ODM1000 OD Mounting Flange Facer is a portable, externally mounted, gear-driven, single-point flange facing machine for all types of flange facings, “O” Ring grooves, RTJ and other V grooves, lens ring, weld Preparation and counter boring…
Precise Bearing & Steady Main Body
Provide the most powerful guarantee for machining using precise bearing & steady main body, equipped with adjustment leg and Jacking leg, various sizes of feet, Easy and fast to install on site.
Precise Body
Modular structural design, high-intensity of material and processing technology, which makes sure the accuracy of machining.
Adjustable mounting arrangement
Equipped with multiple adjustable feet with setting strap, enable the machine easily to be mounted perfectly level and central in flange face.
Drive Power Unit
The machine is driven by a Pneumatic motor, it can achieve cuts Up to a maximum depth of 1mm (0.039″) on flanges without bolt holes or 0.5mm (0.02″) with holes, and Pneumatic drive permits use in hazardous areas. Optional servo drive power is available on request.
SPECIFICATIONS
| Facing Diameter Range | 0-1016mm(0.0-40.0″) |
| OD Clamp Range | 610-1016mm（0.0-40.0″） |
| Tool Post Stroke | 102(4.0″) |
| Tool Post Swivel Angle | + / – 30.0⁰ |
| R.P.M | 0-20 |
| Standard Drive Power Unit | air drive, 4Hp(3kw) |
| Air Consumption / Supply Required | 3.10m³/min |
| Optional Drive Power | Hydraulic or Electric |
| Machine Weight | 610.0Kg |
| Shipping Weight | 890Kg |
| In | Out | Up/down | |||
| Gear | mm/rev | Gear | mm/rev | Gear | mm/rev |
| 1 | 0.128 | 1 | 0.128 | 1 | 0.03 |
| 2 | 0.251 | 2 | 0.251 | 2 | 0.06 |
| 3 | 0.491 | 3 | 0.491 | 3 | 0.15 |
